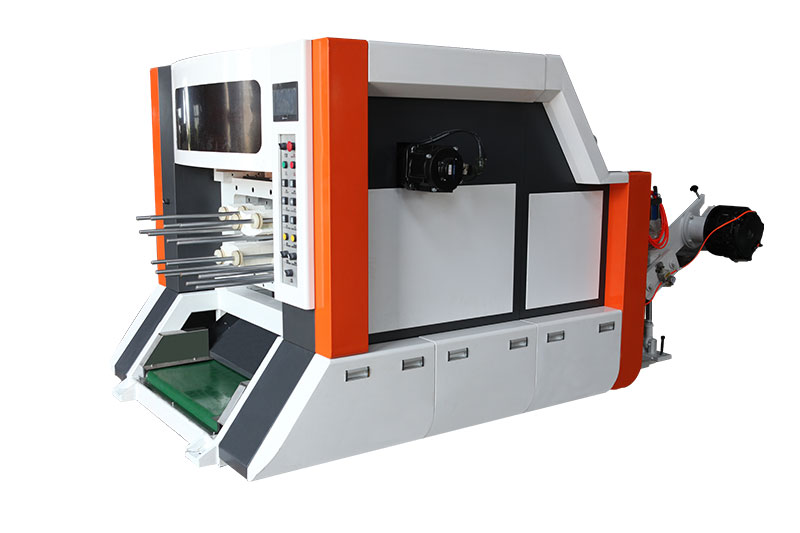

JTCQ-D Automatic high speed roll die punching machine

JTCQ-D Automatic high speed roll die punching machine

Learn More

Animated Video

JTCQ-D Roll automatic punching machine is a good choice for punching and die cutting paper cup fan with different size by changing molds, high speed and good performance with stripping. It is the best associated equipment for flexo printing machine.

Technical Specification

Type:	JTCQ-D900	JTCQ-D1200
Cut Precision:	± 0.10mm
Production capacity:	Metal mold (Germany): 300-380 times/min Metal mold(Japan): 200-240 times/min
Metal die life:	Metal mold (Germany): 60,000,000 times Metal mold(Japan): 20,000,000.times
Max die cutting size:	870×350mm	1150×350mm
Suitable Material:	120-450g/m² PE coated paper, white cardboard paper
Total Power:	9KW	9KW
Total Weight:	3580KGS	3800KGS
Overall Dimension:	3200×1800×1600 mm	3200×2000×1600 mm
Working Air Source:	Air pressure 0.4-0.5Mpa

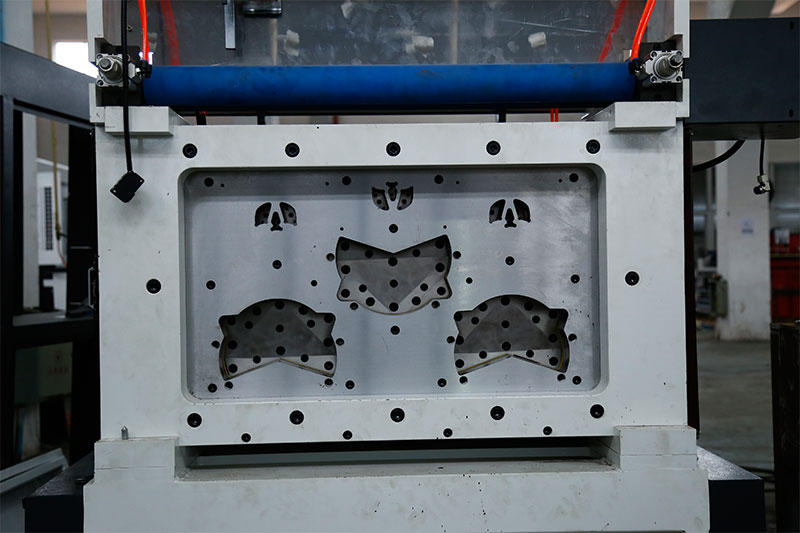

Metal mold.

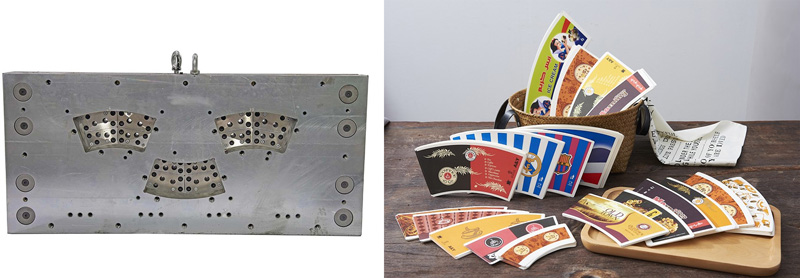

Molds, samples
