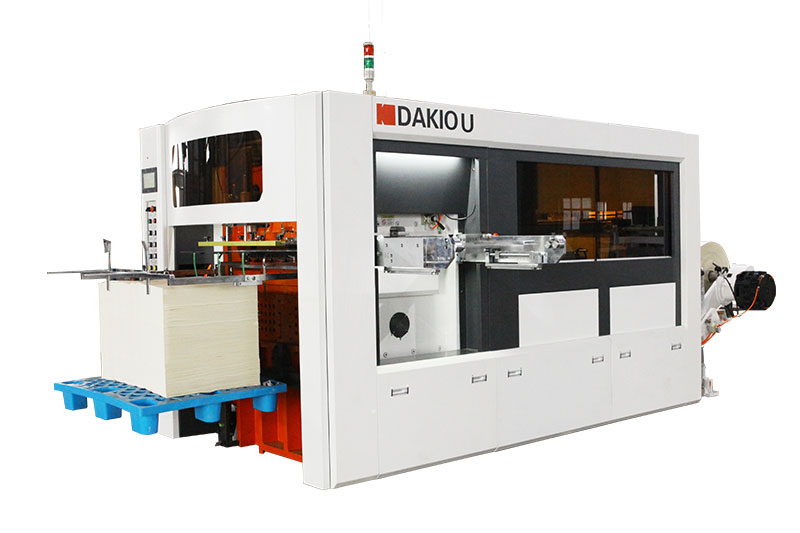

PY-950/1200 High Speed Roll Die Cutting & Creasing & Embossing Machine

PY-950/1200 High Speed Roll Die Cutting & Creasing & Embossing Machine

Learn More

Animated Video

PY-950/1200 is an ideal and professional machine in die-cutting，creasing，embossing and full-stripping various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup,paper box,medical package,wine package,food package and other environmental protection products.

BRIEF PROCESS

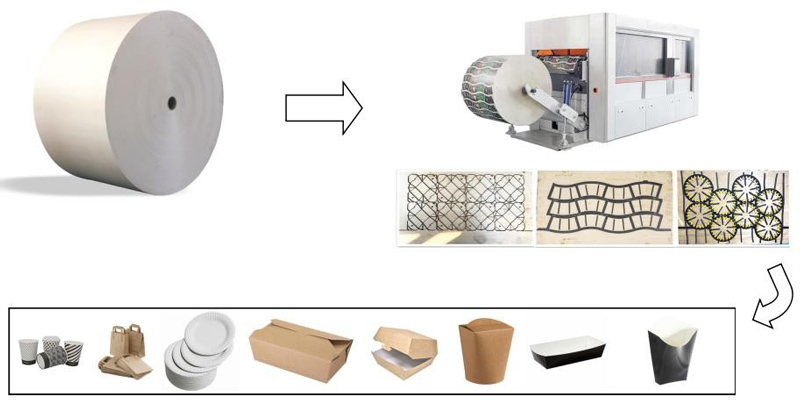

Brief process of PY -950 /1200

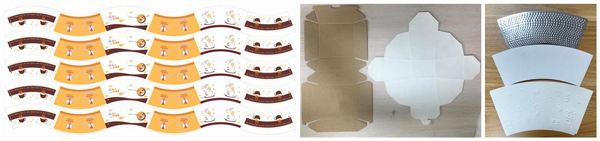

sample

Technical Specification

Type:	PY-950	PY-1200
Cut Precision:	± 0.10mm
Production capacity	150-210 times/min	150-210 times/min
Maximum cutting size:	950×540mm	1200×640mm
Paper Convey Width:	250-950mm	250-1200mm
Suitable Material:	120-600g/m² white cardboard、PE coated paper etc.
Maximum Pressure:	350T	350T
Total Power:	14.5KW	14.5KW
Total Weight:	6200kgs	8400KGS
Overall Dimension:	4200×2100×1850 mm	4200×2300×1850 mm
Working Air Source:	Air pressure 0.6Mpa , Working air: 0.3m³/min
