ZBFC-45 Aluminum Foil Container
ZBFC-45 Aluminum Foil Container

ZBFC-45 Aluminum Foil Container

share:
Learn More
Animated Video
Main Feature

1.Adopts cantilevered rotatable integrated touch screen control structure: moreflexible, safer and less space-consuming than the traditional mobile operator station.

2.The touch screen can remotely monitor the operating status of the equipment and update the program online.

3.Rectangular six-face elongated guide rail

4.Gear sub immersion oil lubrication; adopts electric thick oil forced lubrication system.



Technical Specification

Model

ZBFC-45

Nominal Force

450KN

Main Motor Power

7.5KW

Stroke Range

150-220mm

Stamping Speed Range

35-75times/min.

Table Plate Size

L810xW440mm,2sets movable plate

Maximum Mold Size

L810xW370xH270mm

Maximum Feed Width

700mm

Maximum Aluminum Foil Roll Outer Diameter

600-1500mm

Stacker Conveyor Size

L2000xW700mm

Minimum Stackable Size

120x120mm

Machine Size

7000x2400x2750mm

Machine Weight

8,000KGS

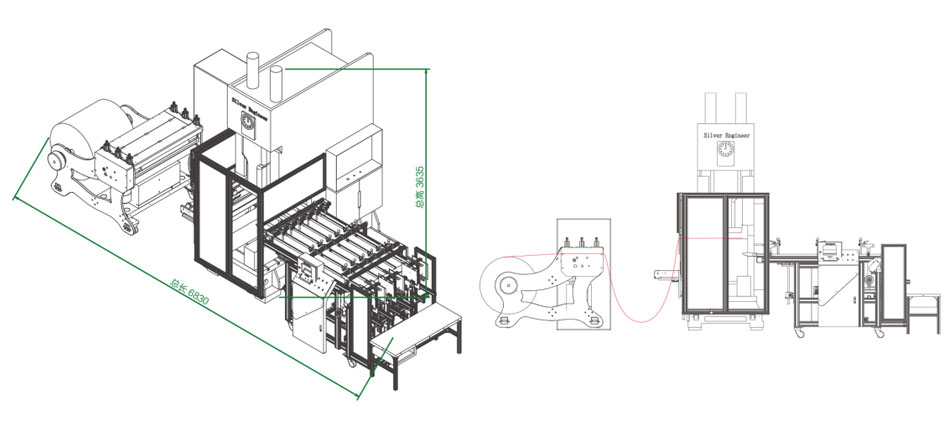

Layout
